This is a guideline that provides a step-by-step process for installing the LGCD1-19 Laundry Spark.
IMPORTANT REMINDERS:
- Before the installation, make sure that the laundry machine is turned off (i.e. unplugging the power cord)
- You have the key (if necessary) to open the service compartment where the computer board is
Step 1. Open the front panel of the machine, which may involve removing some screws, to gain access to the machine's computer input and power connectors.
Step 2. Connect the ShinePay Spark harness's computer input harness to the machine's computer input connector.
Step 3. (Optional). If the machine has a coin acceptor and you wish to continue using coins, connect ShinePay's coin harness to the coin acceptor connector.

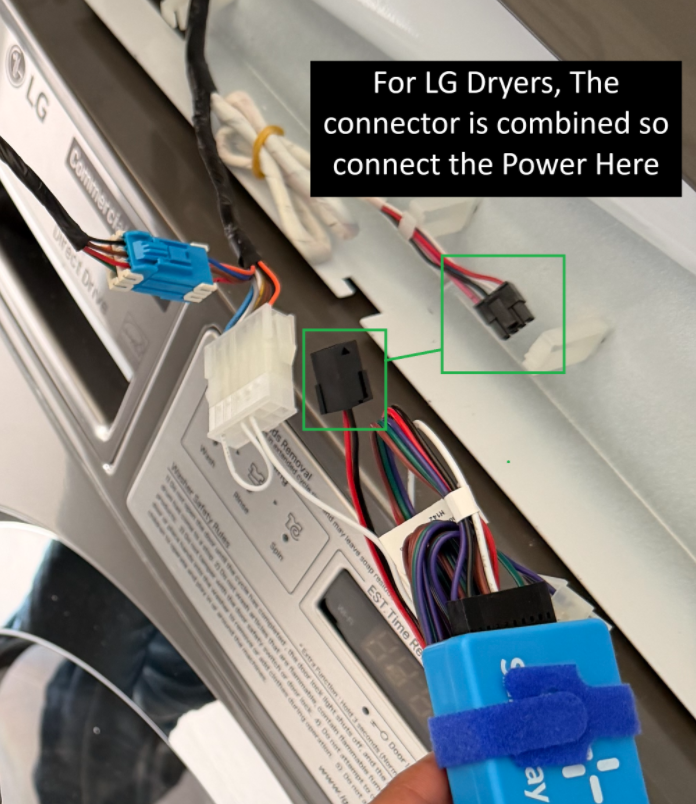

Step 4. Connect the power connector harnesses, make sure that you connect them to the machine's 8-pin power connector, which has only 2 wires.
